MPE Download Instructions:

All programs with .std extension are in STORE/RESTORE format. Download them to your workstation then upload them using a binary file transfer method. FTP Method:

open your.HP3000.address user username pass password bin put c:\subdir\filename.std BEECHSTD;rec=-256,1,f,binary;code=2501 quit

Reflection Terminal Emulator Method:
  • Log on to your HP 3000 in a Reflection session.
  • Open the file transfer dialog box. (File menu, then click Transfer)
  • Enter downloaded file (FILENAME.std) for the local file name and BEECHSTD for the host file name.
  • Select binary mode.
  • Click SETUP
    • WRQ Reflection File Transfer Dialog
  • Select the WRQ tab and enter 256 in the “RECORD SIZE” text box.
  • Click Attributes button
WRQ Reflection File Transfer Setup Dialog
  • Enter 1 for Blocking Factor, 2501 for File Code, Record Type BINARY, and Record Format FIXED.
  • Click OK
Reflection File Transfer Host File Attributes
  • Click OK again.
  • Click transfer to host (highlighted in GREEN below)
  WRQ Reflection File Transfer Dialog

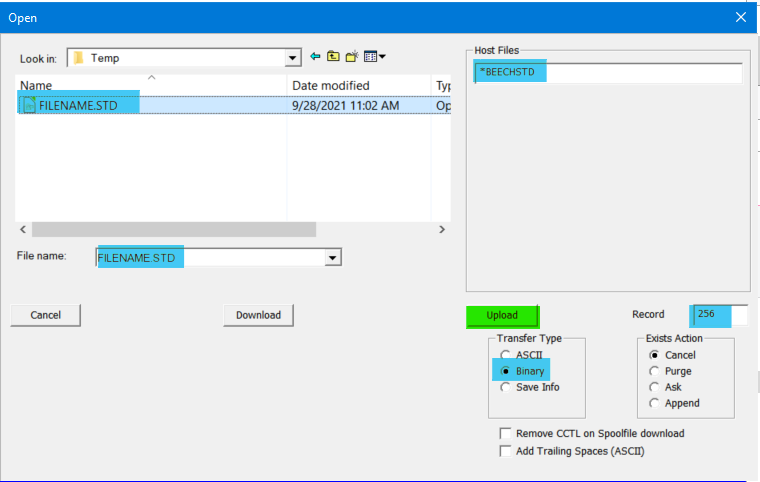

Minisoft Terminal Emulator Method:
  • Log on to your HP3000 in a Minisoft window.
  • Enter file equation:
  • FILE BEECHSTD;REC=128,1,F,BINARY;CODE=2501
  • File menu, Transfer or Send to Host.
  • Select Binary mode
  • Enter Record size 256
  • Enter downloaded file (FILENAME.std) for the local file name and *BEECHSTD for the host file name.
  • Click UPLOAD button (if File Transfer method) or TRANSFER button (if Send to Host method). Minisoft Transfer File Dialog
Once the file is uploaded it should similar to this:
:listf filename,2
ACCOUNT=  ACCOUNT       GROUP=  PUB

FILENAME  CODE  ------------LOGICAL RECORD-----------  ----SPACE----
                  SIZE  TYP        EOF      LIMIT R/B  SECTORS #X MX

BEECHSTD  STORE   128W  FB          53         53   1       64  2 11
To install your software:

The following lists the contents of the Store To Disk File:
:FILE BEECHSTD;DEV=DISC
:RESTORE *BEECHSTD;@.@.@;LISTDIR
                        >> TURBO-STORE/RESTORE VERSION C.60.15  B151AA  <<
                                  (C) 1986 HEWLETT-PACKARD CO.

RESTORE *BEECHSTD;@.@.@;LISTDIR

WED, NOV 1, 2000, 3:00 PM

MPE/iX MEDIA DIRECTORY

MEDIA NAME : STORE/RESTORE-HP/3000.MPEXL
MEDIA VERSION : MPE/iX COMPRESSED MEDIA FORMAT
MEDIA NUMBER : 1

MEDIA CREATION DATE
TUE, OCT 31, 2000, 5:17 PM

STORE ^indfile;*t;compress=high;rename

MEDIA CREATED WITH THE FOLLOWING OPTIONS
OPTION HIGH COMPRESSION

MEDIA RECORD SIZE : 32768
INTERLEAVE DEPTH : 1

FILENAME GROUP    ACCOUNT  CREATOR                    MEDIA SET
LPREADME.PUB     .BEECHGLN MGR    .BEECHGLN >=         1
LPRESET4.PUB     .BEECHGLN MGR    .BEECHGLN >=         1
LPRESET6.PUB     .BEECHGLN MGR    .BEECHGLN >=         1
LPUDC   .PUB     .BEECHGLN MGR    .BEECHGLN >=         1
The following demonstrates extracting the files to your local group:
:FILE BEECHSTD;DEV=DISC
:RESTORE *BEECHSTD;@.@.@;LOCAL
                        >> TURBO-STORE/RESTORE VERSION C.60.15  B151AA  <<
                                        (C) 1986 HEWLETT-PACKARD CO.

RESTORE *BEECHSTD;@.@.@;LOCAL

WED, NOV 1, 2000,   3:02 PM

WILL RESTORE     4 FILES         ; NUMBER OF FILES ON MEDIA       4

FILES RESTORED :                          4
